LED Flexible Module Latest New Technology P4 P2 240mm * 120mm
Advertising Customezed Size Foldable
Advantages

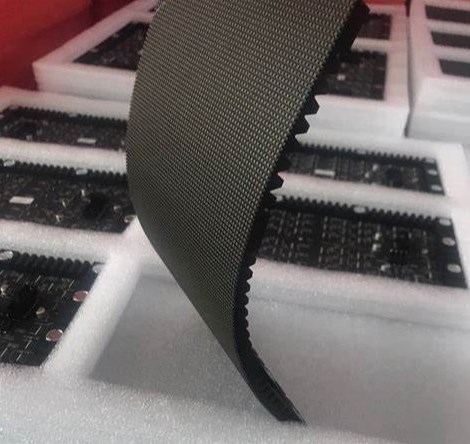

1 . The flexible FPC circuit board made of flexible insulating
material has high compressive and distortion resistance ,
which can better solve the problems of " beating around the bush ,
corner by corner " installation difficulties ;

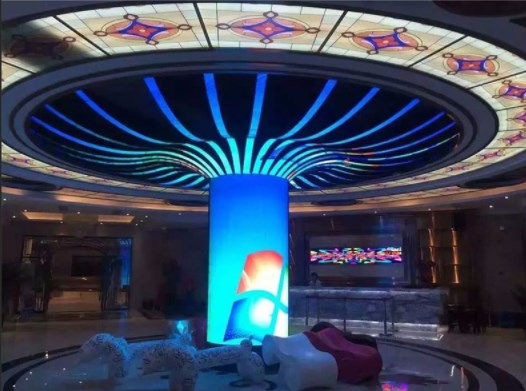

2 . Good ductility , can be arbitrary modeling , cylindrical screen
has high brush performance , can be lifted ,
with the maximum sound requirements ;
3 . Ultra-thin , using special materials and advanced technology ,
ultra-light , the weight of a single module is only 85g ,
conventional LED modules are heavy .
Technical parameter
P4 LED Screen for Transport Ads |
Part I Technicial Parameters |
Led Module Specification |
NO. | Item | Specification |
1 | Pixel Pitch | 4mm |
2 | Module Resolution | W64×H32dots | W80×H40dots |
3 | Module Size | 256*128mm(soft) | 256*128mm | 320*160mm |
4 | Led Packing | 2121 | Nationstar2121 | 2121 |
5 | IP Rate | 43 | 65 | 43 |
6 | IC | Constant current IC | MBI5124 | 2038s |
7 | LED composition | 1R1G1B |
Cabinet Specification |
1 | Cabinet Size | 512*512mm | 640*640mm |
2 | Module Qty | W2X H4 =8PCS | W2X H4 =8PCS |
3 | Physical Resolution | W128×H128dots | W160×H160dots |
4 | Power Consumption(MAX.) | 200 W/m2 | 300 W/m2 |
5 | Power Consumption(AVE.) | 100 W/m2 | 150 W/m2 |
6 | Cabinet Material | Die-casting Aluminum |
7 | Physical Density | 62500 dots/m2 |
8 | Net Weight | 7Kg |
Screen Specification |
1 | Brightness | 900cd/m2 | 1100cd/m2 | 860cd/m2 |
2 | Colors | 16.7 trillion |
3 | Brightness Control | Software 256 level adjustable |
4 | Gray Level | 14 |
5 | View Distance | 5～30m |
6 | Refresh Rate | ≥1200~1920Hz | ≥1920Hz | ≥1920Hz |
7 | Drive Mode | 1/16s | 1/16s | 1/20s |
8 | Life Span | 100,000h |
9 | MTBF | 1000h |
10 | Control mode | Synchronous control or Asynchronous control |
11 | Frame Frequency | ≥60Hz |
12 | Certification | CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
13 | Operation Temperature | -20℃ ～ +45℃ |
14 | Operation Humidity | 10%～95% |
Our service
Pre-sale service :
1 . Inquiries will be replied within 24 hours ;
2 . Market research and forecast for customer ;
3 . Provide unique and professional solutions based on customer's
requirement ;
4 . Data sheet and samples offered ;
5 . Other required services such as special packing design, factory
visiting and so on .
In-sale service :
1 . Tracking producing procedures all the time ;
2 . Provide photos and videos as per customer's requirement during
production ;
3 . Free spare parts provided .
After-sale service :
1 . Complaint respond period not exceed 24 hours , maintenance
guidance and problem solution supplied in 48 hours ;
2 . Warranty : 1year ;
3 . Free technician training ;
4 . Full set of documents free of charge , which including
installation guidance , software operation manual ,
easy maintenance manual and control system software CD and so on .
