    2880Hz Led Flexible Module Curved Led Display Screen Video Panels IC 5153 6363

    Ask Lasest Price
    Brand Name : LONGDA LED
    Model Number : P2 flexible led screen
    Certification : CE / RoHs / FCC / CCC / ISO9001 / ISO14001
    Price : Usd2999 ~ Usd4099 / Sqm ( Price is negotiable )
    Payment Terms : L / C , T / T , Western Union , MoneyGram
    Supply Ability : 1000sqm per month
    Delivery Time : 15 - 18 days
    • Product Details
    • Company Profile

    2880Hz Led Flexible Module Curved Led Display Screen Video Panels IC 5153 6363

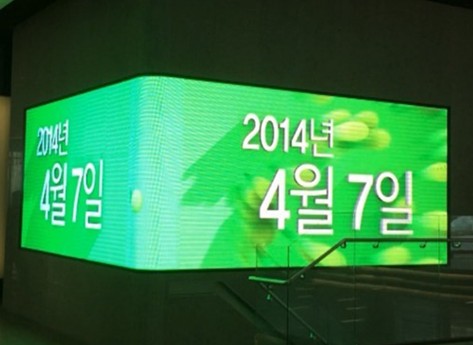

    LED Flexible Module Advertising P2 Curved Flexible LED Video Wall Soft LED Module


    Advantages :


    1 . Ultra HD: 250000 pixels per square meters , like as HD TV screen with full color ;
    2 . Ultra slim cabinet : the thickness is only 65mm , with fashion configuration design ;
    3 . High strength : made with high quality Die - casting Aluminum cabinet , enhance the

    heat dissipation , and extend the cabinet ' s working life .


    Specifications :


    Indoor P2 Full Color LED Screen

    Part I Technicial Parameters

    Led Module Specification

    NO.

    Item

    Specification

    1

    Pixel Pitch

    2mm

    2

    Module Resolution

    W64×H64dots

    W128×H64dots

    W160×H80dots

    W120×H60dots

    3

    Module Size

    128*128mm

    256*128mm

    320*160mm

    240*120mm(soft)

    4

    Led Packing

    1515

    5

    IP Rate

    43

    6

    IC

    2038

    5124

    6363

    5153

    7

    LED composition

    1R1G1B

    Cabinet Specification

    1

    Cabinet Size

    512*768mm

    512*512mm

    640*480mm

    480*480mm

    2

    Module Qty

    W4X H6=24PCS

    W2X H4=8PCS

    W2× H3=6PCS

    W2× H4=8PCS

    3

    Physical Resolution

    W256×H384dots

    W256×H256dots

    W320×H240dots

    W240× H240dots

    4

    Power Consumption(MAX.)

    400W/m2

    200W/m2

    200W/m2

    650W/m2

    5

    Power Consumption(AVE.)

    150W/m2

    100W/m2

    100W/m2

    300W/m2

    6

    Cabinet Material

    Die-casting Aluminum

    7

    Physical Density

    250000 dots/m2

    8

    Net Weight

    11Kg

    8Kg

    9.7Kg

    8kg

    Screen Specification

    1

    Brightness

    700cd/m2

    800cd/m2

    600cd/m2

    700cd/m2

    2

    Colors

    16.7 trillion

    3

    Brightness Control

    Software 256 level adjustable

    4

    Gray Level

    14

    5

    View Distance

    2m~20m

    1.3~12m

    6

    Refresh Rate

    ≥1200~1920Hz

    ≥1200~1920Hz

    ≥1920~3840Hz

    ≥2880Hz

    7

    Drive Mode

    1/32s

    1/40s

    1/30s

    8

    Life Span

    100,000h

    9

    MTBF

    1000h

    10

    Control mode

    Synchronous control or Asynchronous control

    11

    Frame Frequency

    ≥60Hz

    12

    Certification

    CE/ROHS/FCC/CCC/ISO9001/ISO14001

    13

    Operation Temperature

    -20℃ ~ +45℃

    14

    Operation Humidity

    10%~95%



    FAQ :


    1 ) Reply your inquiry in 24 working hours ;


    2 ) Experienced staffs answer all your query in fluent English,Spanish,French,German etc ;

    3 ) Customized design is available,OEM & ODM are welcomed ;

    4 ) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs ;

    5 ) Special discount and protection of sales area provided to our distributor ;

    6 ) Warmly welcome your visit in our company if available ;

    7 ) Guidance service: We can guide on line if customers have questions about the installation and usage ;
    For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer's country for on-site guidance ;

    8 ) Warranty period: 2-3 years after shipment .
