LED Flexible Module P1.875 Flexible LED Module For Indoor
Commercial Display
Advantages

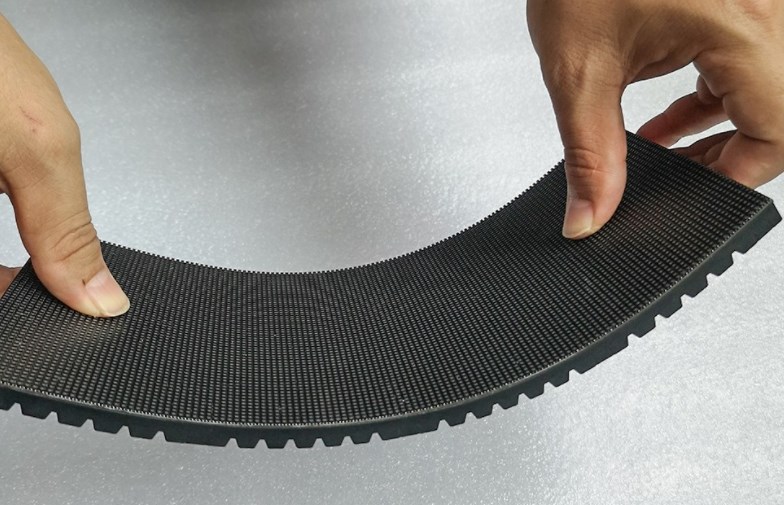

1 . The flexible FPC circuit board made of flexible insulating
material has high compressive and distortion resistance ,
which can better solve the problems of " beating around the bush ,
corner by corner " installation difficulties ;

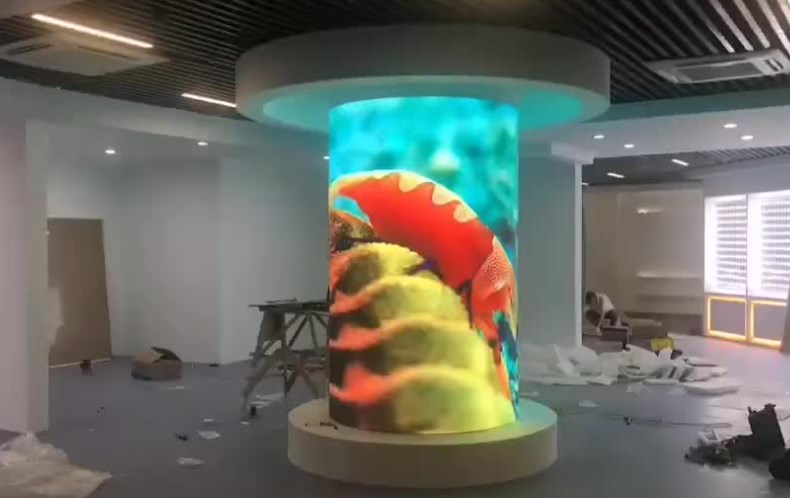

2 . Good ductility , can be arbitrary modeling , cylindrical screen
has high brush performance , can be lifted ,
with the maximum sound requirements ;
3 . Ultra-thin , using special materials and advanced technology ,
ultra-light , the weight of a single module is only 85g ,
conventional LED modules are heavy .
Technical parameter
Indoor P1.875 Full Color LED Screen |
Part I Technicial Parameters |
Led Module Specification |
NO. | Item | Specification |
1 | Pixel Pitch | 1.875mm |
2 | Module Resolution | W128×H64dots | W128×H128dots | W128×H128dots |
3 | Module Size | 240*120mm | 240*240mm | 240*120mm(soft) |
4 | Led Packing | 1515 |
5 | IP Rate | 43 |
6 | IC | LS9929+LS9379 | 2053 | 2053 | 2053 | 5124 |
7 | LED composition | 1R1G1B |
Cabinet Specification |
1 | Cabinet Size | 480*480mm | Magnet Splicing |
2 | Module Qty | W2X H4 =8PCS | W2× H2=4PCS | / |
3 | Physical Resolution | W256×H256dots | W256×H256dots | / |
4 | Power Consumption(MAX.) | 200W/m2 | 650W/m2 |
5 | Power Consumption(AVE.) | 80W/m2 | 300W/m2 |
6 | Cabinet Material | Die-casting Aluminum | Magnet Splicing |
7 | Physical Density | 284444 dots/m2 |
8 | Net Weight | 5Kg | / |
Screen Specification |
1 | Brightness | 670cd/m2 | 600cd/m2 | 650cd/m2 | 600cd/m2 | 700cd/m2 |
2 | Colors | 16.7 trillion |
3 | Brightness Control | Software 256 level adjustable |
4 | Gray Level | 14 |
5 | View Distance | ≥1.8m~15m | 1.3m~12m |
6 | Refresh Rate | ≥3840Hz | ≥1920Hz | ≥2800Hz | ≥2800Hz | ≥1920Hz |
7 | Drive Mode | 1/64s | 1/32s | 1/32s | 1/64s | 1/32s |
8 | Life Span | 100,000h |
9 | MTBF | 1000h |
10 | Control mode | Synchronous control or Asynchronous control |
11 | Frame Frequency | ≥60Hz |
12 | Certification | CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
13 | Operation Temperature | -20℃ ～ +45℃ |
14 | Operation Humidity | 10%～95% |
Our service
Pre-sale service :
1 . Inquiries will be replied within 24 hours ;
2 . Market research and forecast for customer ;
3 . Provide unique and professional solutions based on customer's
requirement ;
4 . Data sheet and samples offered ;
5 . Other required services such as special packing design, factory
visiting and so on .
In-sale service :
1 . Tracking producing procedures all the time ;
2 . Provide photos and videos as per customer's requirement during
production ;
3 . Free spare parts provided .
After-sale service :
1 . Complaint respond period not exceed 24 hours , maintenance
guidance and problem solution supplied in 48 hours ;
2 . Warranty : 1year ;
3 . Free technician training ;
4 . Full set of documents free of charge , which including
installation guidance , software operation manual ,
easy maintenance manual and control system software CD and so on .
