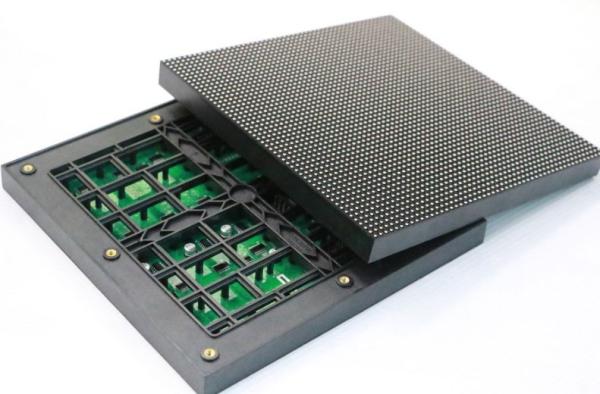

Outdoor Fixed Or Rental Led Video Wall P3 Waterproof IP65 Led
Screen Module
Product Introduction
1 . LED advertisements with strong visual impact , large size ,
dynamic effect and sound and picture integration
can comprehensively stimulate the audience's senses and effectively
convey information to guide consumption .
2 . Outdoor LED screens with wide coverage are generally installed
in shopping malls and other areas with
concentrated pedestrian flow .
3 . Long release period outdoor LED advertisements can be played
around the clock .
It is easier for the audience to see , can better guide the
potential customer group ,
so that businesses with less cost to achieve better publicity
effect .
4 . Outdoor LED advertisements with low audience aversion can
broadcast programs to more audiences in a real
and timely manner through live broadcasting technology .
Specifications
P3 Full Color LED Screen |
Part I Technicial Parameters |
Led Module Specification |
NO. | Item | Specification |
1 | Pixel Pitch | 3mm |
2 | Module Resolution | W64×H64dots | W80×H40dots |
|
3 | Module Size | 192*192mm(soft) | 192*192mm | 240*120mm(soft) | 192*192mm(poster) |
4 | Led Packing | 2121 |
5 | IP Rate | 43 |
6 | IC | 5124 | 5020 | 5124 |
7 | LED composition | 1R1G1B |
Cabinet Specification |
1 | Cabinet Size | 576*576mm | 480*480mm | 576*1920mm |
2 | Module Qty | W3X H3 =8PCS | W2X H4=8PCS | W3X H10=30PCS |
3 | Physical Resolution | W192×H192dots | W160×H160dots | W192×H640dots |
4 | Power Consumption(MAX.) | 200 W/m2 | 900 W/m2 |
5 | Power Consumption(AVE.) | 110 W/m2 | 280 W/m2 |
6 | Cabinet Material | Die-casting Aluminum | Plexiglass plate |
7 | Physical Density | 111111 dots/m2 |
8 | Net Weight | 6.6Kg | 7.2Kg | 5.6Kg | 15Kg |
Screen Specification |
1 | Brightness | 800cd/m2 | 900cd/m2 | 800cd/m2 | 900cd/m2 |
2 | Colors | 16.7 trillion |
3 | Brightness Control | Software 256 level adjustable |
4 | Gray Level | 16 |
5 | View Distance | 3～30m |
6 | Refresh Rate | ≥1920Hz |
7 | Drive Mode | 1/16s | 1/32s | 1/20s | 1/32s |
8 | Life Span | 100,000h |
9 | MTBF | 1000h |
10 | Control mode | Synchronous control or Asynchronous control |
11 | Frame Frequency | ≥60Hz |
12 | Certification | CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
13 | Operation Temperature | -20℃ ～ +45℃ |
14 | Operation Humidity | 10%～95% |
FAQ
1 . Strict quality control :
The quality of our display is excellent , we use the materials of
high quality suppliers in the world ,
strictly control the production process , and pass the multiple
quality inspection to ensure that every product is qualified .
2 . Quality guarantee :
All our LED display screens is more than 100,000 hours life span .
And we test them for 48 hours at least .
3 . Long warranty :
2 - 3 years warranty , any quality problem during warranty time
will be handled .
4 . Prompt & Professional service :
Any inquires will be replied within 24/7 hours and you ' ll get
helpful suggestions from us .
