    P6 Commercial Outdoor Advertising Screen Sign Panel 16.7M 5500cd/ M2

    Ask Lasest Price
    Brand Name : Longda LED
    Model Number : Outdoor P6
    Certification : CE / ROHS / CCC / FCC / ISO9001 / ISO14001
    Price : Usd799 ~ Usd999 / Sqm ( Price is negotiable )
    Payment Terms : L / C , T / T , Western Union , MoneyGram
    Supply Ability : 5000sqm per month
    Delivery Time : 15 - 18 days
    • Product Details
    • Company Profile

    P6 Commercial Outdoor Advertising Screen Sign Panel 16.7M 5500cd/ M2

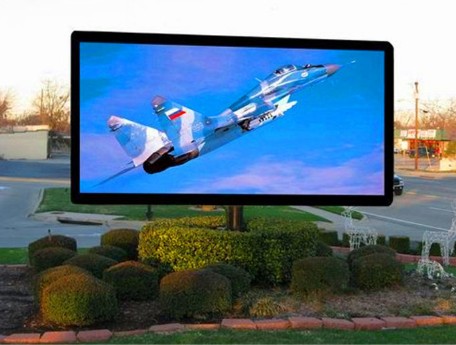

    Outdoor Led Video Walls P6 Outdoor Full Color LED Sign Panel Screen Commercial Advertising Display


    Functions and Advantages :


    1. High refresh rate: With NOVA STAR control system , no scanning line when photographed


    2. High gray level: 256 RGB each , display 16.7M colors , vivid and perfect video effect


    3.High resolution: The most apparent features of the new generation of LED display


    4.Good color uniformity: With brand Lamp Nationstar and high refresh MBI5124 IC.


    Specifications :


    Outdoor P6 LED Screen

    Part I Technicial Parameters

    Led Module Specification

    NO.

    Item

    Specification

    1

    Pixel Pitch

    6mm

    2

    Module Resolution

    W32×H32dots

    3

    Module Size

    192*192mm

    4

    Led Packing

    3535

    3528

    5

    IP Rate

    65

    6

    IC

    Constant current IC

    5124

    7

    LED composition

    1R1G1B

    Cabinet Specification

    1

    Cabinet Size

    576*576mm

    960*960mm

    2

    Module Qty

    W3X H3 =9PCS

    W5X H5 =25PCS

    3

    Physical Resolution

    W96×H96dots

    W160×H160dots

    4

    Power Consumption(MAX.)

    600 W/m2

    5

    Power Consumption(AVE.)

    230 W/m2

    300 W/m2

    6

    Cabinet Material

    Die-casting Aluminum

    7

    Physical Density

    27777 dots/m2

    8

    Net Weight

    7.5Kg

    7.7Kg

    Screen Specification

    1

    Brightness

    5500cd/m2

    1000cd/m2

    2

    Colors

    16.7 trillion

    3

    Brightness Control

    Software 256 level adjustable

    4

    Gray Level

    14

    5

    View Distance

    6~50m

    6~150m

    6

    Refresh Rate

    ≥1200~1920Hz

    ≥960Hz

    7

    Drive Mode

    1/8s

    1/16s

    8

    Life Span

    100,000h

    9

    MTBF

    1000h

    10

    Control mode

    Synchronous control or Asynchronous control

    11

    Frame Frequency

    ≥60Hz

    12

    Certification

    CE/ROHS/FCC/CCC/ISO9001/ISO14001

    13

    Operation Temperature

    -20℃ ~ +45℃

    14

    Operation Humidity

    10%~95%



    FAQ :


    Question 1: How can I trust your LONGDA LED factory ?


    Answer : Yes, when you talk with us now , we are here . We do led since 2009 ,it is over 12 years . In the past 8 years , we develop so well. Tomorrow and future , we will largely expand our LED market, you will see it .
    Welcome to try our LED sample quality .
    We do have100% confidence in our LED product .


    Quesiton 2: If I need led very urgently ,how fast can you finish the goods ?


    Answer:How fast you want ?Three days ?One week ? Definite shipping date ?
    We produce LED everyday .We have some led modules in stock .
    Put the most urgent and important order at the first place .
    You are important to us .Surely to establish first-time good relationship .
    We do must finish it at FAST ROCKET TIME.


    Q3:Is it easy to install this led display ?


    Answer : If you are new to LED ,we will help you to know led from ZERO to Professional .
    We have installation manual book and professional engineering team to guide you .
    To help you better understand LED is to make us get your earlier trust .
    If you knew LED before,we can learn from each other.
    We could be Future Shaking-hands Partners .
    Our engineering team remote help is ready for you 24-hours .
