    Asynchronous Small Pixel Led Display Wall Movie Full HD 640*480mm 172*86dots

    Ask Lasest Price
    Brand Name : Longda LED
    Model Number : P1.86
    Certification : CE / RoHs / FCC / CCC / ISO9001 / ISO14001
    Price : Usd899 ~ Usd1399 / Sqm ( price is negotiable )
    Payment Terms : L / C , T / T , Western Union , MoneyGram
    Supply Ability : 5000sqm per month
    Delivery Time : 15 - 18 days
    • Product Details
    • Company Profile

    Asynchronous Small Pixel Led Display Wall Movie Full HD 640*480mm 172*86dots

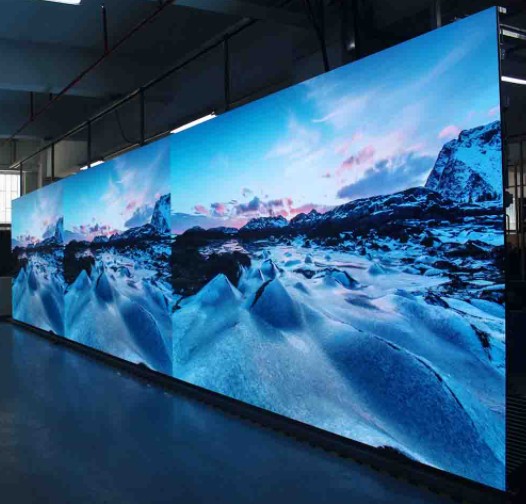

    Small Pixel Led Display 640 X 480mm HD P1.86 Led Video Wall On Cinema


    Functions and Advantages :


    1 . High refresh rate : With NOVA STAR control system , no scanning line when photographed ;
    2 . High gray level : 256 RGB each , display 16.7M colors , vivid and perfect video effect ;
    3 . High resolution : The most apparent features of the new generation of LED display ;
    4 . Good color uniformity : With brand Lamp Nationstar and high refresh MBI5124 IC .


    Specifications :


    Indoor P1.86 LED Screen

    Part I Technicial Parameters

    Led Module Specification

    NO.

    Item

    Specification

    1

    Pixel Pitch

    1.86mm

    2

    Module Resolution

    W172×H86dots

    3

    Module Size

    320*160mm

    4

    Led Packing

    1515

    5

    IP Rate

    43

    6

    IC

    6363

    2065

    7

    LED composition

    1R1G1B

    Cabinet Specification

    1

    Cabinet Size

    640*480mm

    2

    Module Qty

    W2X H3 =6PCS

    3

    Physical Resolution

    W344×H258dots

    4

    Power Consumption(MAX.)

    200 W/m2

    5

    Power Consumption(AVE.)

    120W/m2

    140W/m2

    6

    Cabinet Material

    Die-casting Aluminum

    7

    Physical Density

    288906 dots/m2

    8

    Net Weight

    7.5Kg

    8Kg

    Screen Specification

    1

    Brightness

    ≥600cd/m2

    ≥670cd/m2

    2

    Colors

    16.7 trillion

    3

    Brightness Control

    Software 256 level adjustable

    4

    Gray Level

    14

    5

    View Distance

    1.9-15m

    6

    Refresh Rate

    ≥1920~3840Hz

    ≥3840Hz

    7

    Drive Mode

    1/43s

    1/57s

    8

    Life Span

    100,000h

    9

    MTBF

    1000h

    10

    Control mode

    Synchronous control or Asynchronous control

    11

    Frame Frequency

    ≥60Hz

    12

    Certification

    CE/ROHS/FCC/CCC/ISO9001/ISO14001

    13

    Operation Temperature

    -20℃ ~ +45℃

    14

    Operation Humidity

    10%~95%




    FAQ :


    Question 1: How can I trust your LONGDA LED factory ?

    Answer : Yes, when you talk with us now , we are here . We do led since 2009 , it is over 12 years .

    In the past 8 years , we develop so well. Tomorrow and future , we will largely expand our LED market, you will see it .
    Welcome to try our LED sample quality .
    We do have100% confidence in our LED product .

    Question 2: If I need led very urgently , how fast can you finish the goods ?

    Answer:How fast you want ?Three days ? One week ? Definite shipping date ?
    We produce LED everyday . We have some led modules in stock .
    Put the most urgent and important order at the first place .
    You are important to us . Surely to establish first-time good relationship .
    We do must finish it at FAST ROCKET TIME.

    Question 3: Is it easy to install this led display ?

    Answer : If you are new to LED , we will help you to know led from ZERO to Professional .
    We have installation manual book and professional engineering team to guide you .
    To help you better understand LED is to make us get your earlier trust .
    If you knew LED before , we can learn from each other.
    We could be Future Shaking-hands Partners .
    Our engineering team remote help is ready for you 24-hours .
