Small Pixle Led Display P1.875 480 X 480mm Cabinet Led Poster
Display Indoor Usage
Product Introduction :
1 . High definition and high resolution , show a wonderful visual
performance ;
2 . Good quality and very competitive price in the market , because
we are the manufacturer ;
3 . High resolution could guarantee superior performance even with
small screen size .
Specifications :
Indoor P1.875 Full Color LED Screen |
Part I Technicial Parameters |
Led Module Specification |
NO. | Item | Specification |
1 | Pixel Pitch | 1.875mm |
2 | Module Resolution | W128×H64dots | W128×H128dots | W128×H128dots |
3 | Module Size | 240*120mm | 240*240mm | 240*120mm(soft) |
4 | Led Packing | 1515 |
5 | IP Rate | 43 |
6 | IC | LS9929+LS9379 | 2053 | 2053 | 2053 | 5124 |
7 | LED composition | 1R1G1B |
Cabinet Specification |
1 | Cabinet Size | 480*480mm | Magnet Splicing |
2 | Module Qty | W2X H4 =8PCS | W2× H2=4PCS | / |
3 | Physical Resolution | W256×H256dots | W256×H256dots | / |
4 | Power Consumption(MAX.) | 200W/m2 | 650W/m2 |
5 | Power Consumption(AVE.) | 80W/m2 | 300W/m2 |
6 | Cabinet Material | Die-casting Aluminum | Magnet Splicing |
7 | Physical Density | 284444 dots/m2 |
8 | Net Weight | 5Kg | / |
Screen Specification |
1 | Brightness | 670cd/m2 | 600cd/m2 | 650cd/m2 | 600cd/m2 | 700cd/m2 |
2 | Colors | 16.7 trillion |
3 | Brightness Control | Software 256 level adjustable |
4 | Gray Level | 14 |
5 | View Distance | ≥1.8m~15m | 1.3m~12m |
6 | Refresh Rate | ≥3840Hz | ≥1920Hz | ≥2800Hz | ≥2800Hz | ≥1920Hz |
7 | Drive Mode | 1/64s | 1/32s | 1/32s | 1/64s | 1/32s |
8 | Life Span | 100,000h |
9 | MTBF | 1000h |
10 | Control mode | Synchronous control or Asynchronous control |
11 | Frame Frequency | ≥60Hz |
12 | Certification | CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
13 | Operation Temperature | -20℃ ～ +45℃ |
14 | Operation Humidity | 10%～95% |

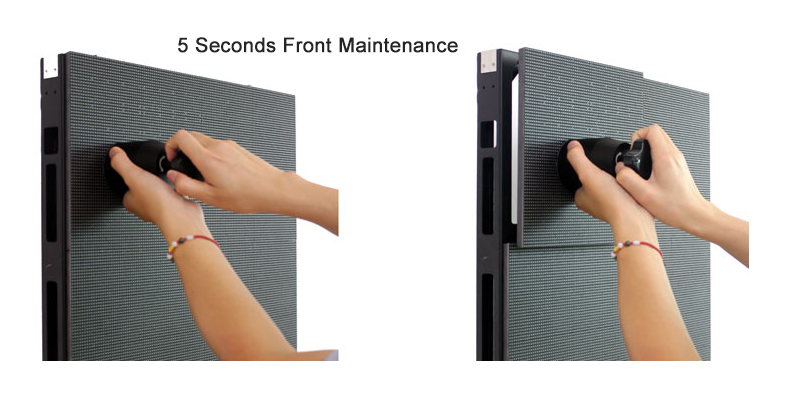

Fast Front Maintenance :
FAQ :
1. Strict quality control :
The quality of our display is excellent . We use the materials of
high quality suppliers in the world ,
strictly control the production process , and pass the multiple
quality inspection to ensure that everyproduct is qualified .
2. Quality guarantee:
All our LED display screens is more than 100,000 hours life span
3. Long warranty:
Two - year warranty, any quality problem during warranty time will
be handled .
4. Prompt &Professional service:
Any inquires will be replied within 24/7 hours and you'll get
helpful suggestions from us.
Your questions :
Q1:LED display models are generally expressed in PX, such as P2 P3
P4.....P8, P10, what does this mean?
A: P1.25, P2, P3 P4.....P8,P10 means that the pixel pitch is
1.25mm, 2mm, 3mm 4mm....10mm,
which determines resolution of a display .Pixel pitch is smaller,
led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing
distance, the size of the
display screen, thedesired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer
you?
A:You should provide width/height of the display, the main use, the
viewing distance,
the scene photos, special requirements,then I can provide you with
a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and
installation guidance and wiring diagram,
free remote debugging. We can also send our engineers to the site
to guide the installation if needed.
Q5:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working
days.
Q6:Can I order a sample?
A:Yes, your sample orders are welcome, after checking our quality
and service,
we are confident that you will come back for your future orders.
