Indoor Full Color Led Display Screen 320 * 160mm / 240 * 120mm RGB
P2.5 Led Soft Module
Advantages :
Indoor full color led display screen compared with the traditional
PCB material , the flexible FPC circuit
board made of flexible insulating material has high compressive and
distortion resistance , which can
better solve the problems of installation difficulties .
Specification :
| Pixel Pitch | 2.5mm LED Flexible Module |
| Module Resolution | W128 × H64 dots / W96 × H48 dots |
| Module Size | 320 * 160mm / 240 * 120mm |
| Led Packing | 2020 |
| IP Rate | 43 |
| LED composition | 1R1G1B |
| Brightness | 800cd / m² |
| Colors | 281 trillion |
| Brightness Control | Software 256 level adjustable |
| Gray Level | 16 |
| View Distance | 5 ~ 100m |
| Refresh Rate | ≥ 1920hz ~ 3840Hz |
| Drive Mode | 32s / 24s |
| Life Span | 100000h |
| MTBF | 1000h |
| Control mode | Synchronous control or Asynchronous control |
| Frame Frequency | ≥ 60Hz |
| Certification | CE / ROHS / FCC / CCC / ISO9001 / ISO14001 |
| Operation Temperature | - 20 ℃ ～ + 45 ℃ |
| Operation Humidity | 10 % ～ 95 % |
Applications :

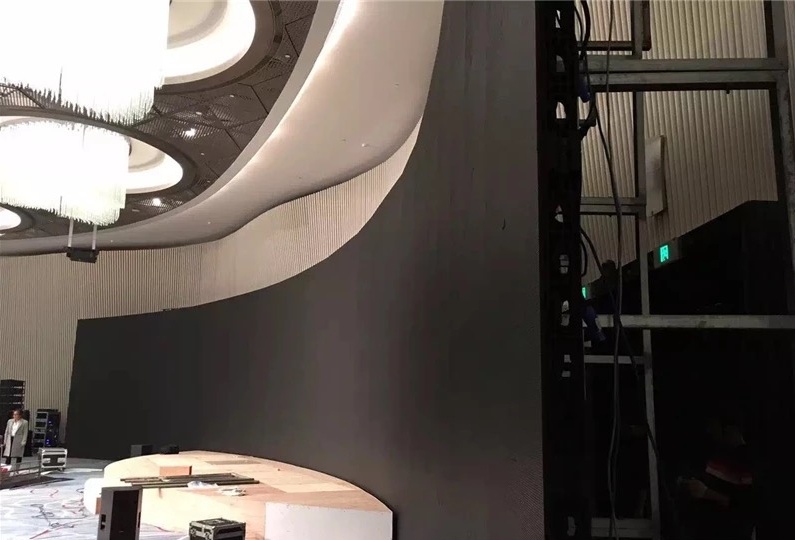

Indoor full color soft P2.5 led screen is widely used for command
room , exhibition room , trade show ,
press conference , plaza , high-end advertisement , transport ads ,
shopping mall , Tv station , square ,
amusement place , entertainment venues , and so on .
FAQ :
Q1 . How does your factory do regarding quality control ?
Quality is priority .
At first , our factory use the best SMT machine is YAMAHA , and all
product aging test 48hours at least .
Our product approved CE / ROHS / FCC / CCC / ISO9001 / ISO140001
certificates .
Q2 . What is your MOQ ?
Any quantity is acceptable for your order . And the price is
negotiable for large quantity .
Q3 . When will you make the delivery ?
We can make the delivery within 3 - 5 working days for the led
modules and 10 - 30 days for the led display
with cabinet according to the size and quantities of your order .
Q4 . How long is the warranty ?
The standard warranty is 1 or 2 years . It could be longer upon
request .
Q5 . Do you provide any free spare parts in each order ?
Yes , a certain amount of spare parts will be provided for free ,
spare parts including module , power cable ,
signal cable , LED lamp , IC , mask , power supply , receiving card
, etc .
Q6 . How to choose the control way by computer or phone ?
Synchronous by computer : usually for indoor fixed and all rental
event .
Asynchronous by phone or ipad : widely used for outdoor fixed
advertising .
Q7 . How about your packing ?
Carton / Plywood case / Flightcase .
Q8 . Which shipping way do you support ?
Our factory have shipping agent , if you want us help you for
shipping , you can choose shipping by sea or air .
you only need to tell us your request and sea port or air port .
Q9 . Is the product customizable ?
Yes , we can customize the product according to your needs , you
just need to provide the requirements details .
