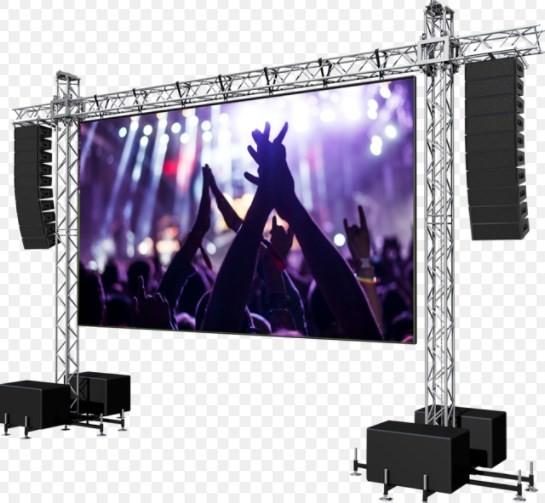

Led Stage Backdrop Screen Aluminum Hanging LED Screen Truss Display
Outdoor Events P6
Functions and Advantages :
1 . LED advertisements with strong visual impact , large size ,
dynamic effect and sound and picture integration
can comprehensively stimulate the audience's senses and effectively
convey information to guide consumption ;

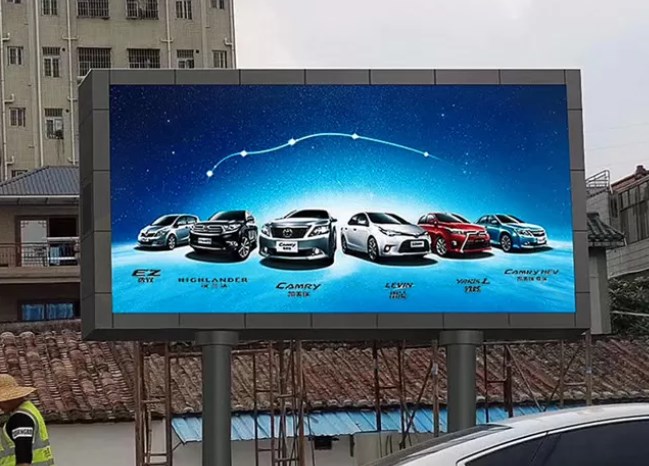

2 . Outdoor LED screens with wide coverage are generally installed
in shopping malls and other areas with
concentrated pedestrian flow . Through frequent communication with
user groups , consumers' strong desire to
buy is stimulated and brand awareness is improved ;
3 . Long release period outdoor LED advertisements can be played
around the clock .
It is easier for the audience to see , can better guide the
potential customer group , so that businesses with less
cost to achieve better publicity effect ;
4. Outdoor LED advertisements with low audience aversion can
broadcast programs to more audiences in a real
and timely manner through live broadcasting technology .
Including special topics , columns , variety shows , animation ,
radio plays , TV plays , etc , rich in content ,
to avoid the advertising audience consciously and actively avoid
the contact barriers .
Specifications :
Outdoor P6 LED Screen |
Part I Technicial Parameters |
Led Module Specification |
NO. | Item | Specification |
1 | Pixel Pitch | 6mm |
2 | Module Resolution | W32×H32dots |
3 | Module Size | 192*192mm |
4 | Led Packing | 3535 | 3528 |
5 | IP Rate | 65 |
6 | IC | Constant current IC | 5124 |
7 | LED composition | 1R1G1B |
Cabinet Specification |
1 | Cabinet Size | 576*576mm | 960*960mm |
2 | Module Qty | W3X H3 =9PCS | W5X H5 =25PCS |
3 | Physical Resolution | W96×H96dots | W160×H160dots |
4 | Power Consumption(MAX.) | 600 W/m2 |
5 | Power Consumption(AVE.) | 230 W/m2 | 300 W/m2 |
6 | Cabinet Material | Die-casting Aluminum |
7 | Physical Density | 27777 dots/m2 |
8 | Net Weight | 7.5Kg | 7.7Kg |
Screen Specification |
1 | Brightness | 5500cd/m2 | 1000cd/m2 |
2 | Colors | 16.7 trillion |
3 | Brightness Control | Software 256 level adjustable |
4 | Gray Level | 14 |
5 | View Distance | 6～50m | 6~150m |
6 | Refresh Rate | ≥1200~1920Hz | ≥960Hz |
7 | Drive Mode | 1/8s | 1/16s |
8 | Life Span | 100,000h |
9 | MTBF | 1000h |
10 | Control mode | Synchronous control or Asynchronous control |
11 | Frame Frequency | ≥60Hz |
12 | Certification | CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
13 | Operation Temperature | -20℃ ～ +45℃ |
14 | Operation Humidity | 10%～95% |
FAQ :
Question1 : How can I trust your LONGDA LED factory ? |
Answer : Yes , when you talk with us now , we are here . We do led
since 2009 , it is over 12 years . In the past 8 years , we develop so well . Tomorrow and future , we
will largely expand our LED market, you will see it .
Welcome to try our LED sample quality .
We do have 100% confidence in our LED product . |
Question2 : If I need led very urgently , how fast can you finish
the goods ? |
Answer : How fast you want ? Three days ? One week ? Definite
shipping date ?
We produce LED everyday . We have some led modules in stock .
Put the most urgent and important order at the first place .
You are important to us . Surely to establish first-time good
relationship .
We do must finish it at FAST ROCKET TIME . |
Question3 : Is it easy to install this led display ? |
Answer : If you are new to LED , we will help you to know led from
ZERO to Professional .
We have installation manual book and professional engineering team
to guide you .
To help you better understand LED is to make us get your earlier
trust .
If you knew LED before , we can learn from each other .
We could be Future Shaking - hands Partners .
Our engineering team remote help is ready for you 24 hours . |
