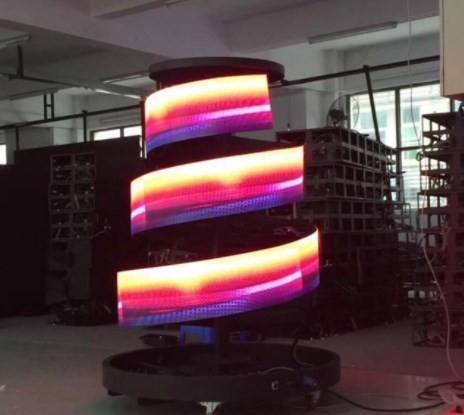

Led Stage Backdrop Screen RGB LED Stage Backdrop Flexible P2.5 LED
Screen For Sale
Advantages :
Compared with the traditional PCB material , the flexible panel has
high compressive and distortion resistance ,
which can better solve the problems of " beating around the bush ,
corner by corner " installation difficulties .
LED flexible module installation mode is mainly magnetic column
suction, installation is convenient and quick ,
but also easy to shape , and box connection line is fast to joint
connection , firm and reliable, for you to save the
" prehistory force " . Compared with regular size group, it saves
more time and is easier to install.
Technical parameters :
P2.5 Flexible Video LED Display Screen |
S/N | Item | Technical Parameters |
LED Parameters |
1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle |
2 | Red LED | SMD2020 | 540-702mcd | 620-625nm | 160º/160º |
3 | Green LED | SMD2020 | 1200-1300mcd | 519-522nm | 160º/160º |
4 | Blue LED | SMD2020 | 200-260mcd | 462-465nm | 160º/160º |
Module Specification |
1 | Pixel Pitch | 2.5mm |
2 | Pixel Configuration | 1R1G1B |
3 | Module Resolution | 96 x 48 pixels |
4 | Module Pixles | 4608 pixels |
5 | Module Size | 240mm X 120mm |
Cabinet Specification |
1 | Cabinet Size | 480mm x 480mm |
2 | Cabinet Resolution | 192 x 192 pixels |
3 | Module Quanity (pcs) | 2 * 4 = 8pcs |
4 | Cabinet Pixels | 36864 pixels |
5 | Pixel Density | 160000 pixels / m² |
6 | Cabinet Materials | Die Casting Aluminum Cabinet for rental purpose |
7 | Cabinet Weight | 5.6 kg per cabinet |
8 | Packaging | Fly case |
9 | Fly Case Size | 105*65*65CM ( one case for six cabinets )/ 85kg |
Whole Screen Specification |
1 | Screen Brightness | ≥800cd/m² |
2 | Driving Method | 1/24 scan |
3 | Best Viewing Distance | 2.5m - 40m |
4 | Max. Power Consumption | 200W/m² |
5 | Average Power Consumption | 110W/m² |
6 | Gray Level | 65536 levels ( 16 bit ) |
7 | Display Color | 16M |
8 | Frame Frequency | ≥ 60Hz |
9 | Refresh Frequency | ≥ 1920Hz |
10 | Uninterrupted Working Hours | ≥72 hours |
11 | Screen Life-span | ≥100,000 hours |
12 | MTBF | ≥5,000 hours |
13 | Discrete Blind Spot Rate | <1/10000 |
14 | Continuous Blind Spot Rate | None |
15 | Blind Spot Rate | <1/10000 |
16 | Protective Scale | For indoor use only |
17 | Screen Plainness | <±1mm |
18 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
19 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius |
Humidity:10%~90% RH |
20 | Control Mode | Synchronous display with control PC by DVI |
21 | Control System | Linsn, Novastar or as you required. |
22 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
23 | Interface | Standard Ethernet |
24 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet
cable <100m |
25 | Certificate | CE, ROHS, FCC, CCC, ISO9001, ISO14001 |
FAQ :
1 : What is the warranty of your led display ?
A : We offer 2 - 3 years warranty and more than 100000 hours screen
life span .
2 : What is your payment term ? How long it takes to delivery ?
A : We usually accapt the T / T or L / C , both of them will at
least 30 % deposit in advance ,
and the rest of 70 % will paid before delivery . The lead time is
usually 20 day .
3 : How can you ensure the led display product quality ?
A : Before shippment , all the screens have aging test and then we
also have waterproof test and shake test ,
ensure products can transportation safety and normal use .
4 : What is your pre - sale and post - sale service ?
A : For pre - sale service , we have professional sales team and
technical team ,
who are willing to answer your question within 24 hours .
For post - sale service , we will instruct you how to installation
, how to use , how to change the broken moudles ,
and we can also send the technicals to your country , in general ,
our led display will not have a big problem ,
you can rest assured to buy .
Company other products :
Indoor fixed LED screen: P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P3, P3.9, P4, P4.8, P5, P6
Outdoor fixed LED screen: P5, P6, P8, P10
Outdoor rental LED screen: P3.9, P4.8, P5, P6, P6.25, P8, P10
Small pitch LED screen: P1.25 , P1.538 , P1.56 , P1.667 , P1.86 ,
P1.875 , P1.9 , P2
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P8, P10
LED poster player: P2.5, P3, P4, P5, P6, P8, P10
